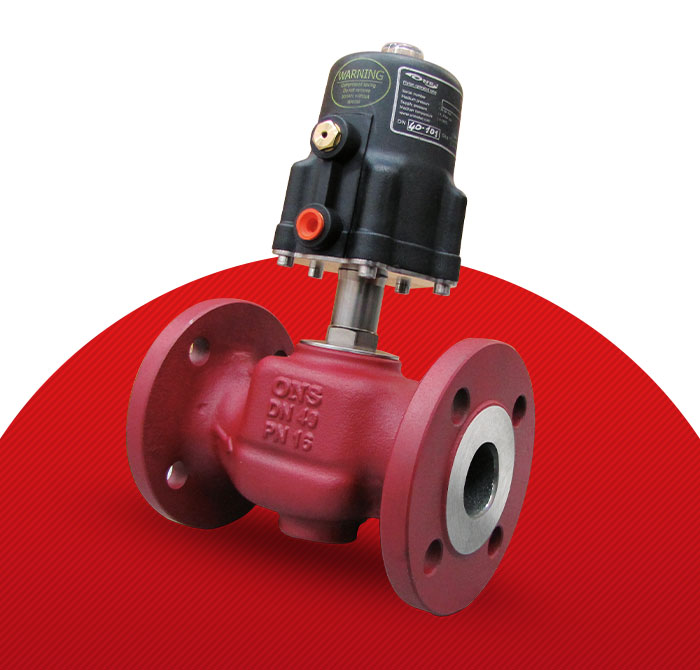

PY 101 Series DN 15-65 PN16

PY101 series pneumatic on-off valves are the most effective response to water, air, oil and unexplosive gasses interception.

The construction flexibility of this valve allows a standard on-off use that can be normally closed, normally open or double effect.

The steady materials and the specifically selected gaskets guarantee an efficent operation even under critical conditions of valve opening/closing in very reduced times.

This valve can reach and normally operate at temperatures up to 180°C. This valve has reduced overall dimensions and a wide range of connections in order to meet the sepecific requirements of every single plant.

The large number of applications of this valve makes it an universal model. This is ensured by remarkable costruction details such as:

From DN15 up to DN65 the body made of GG 25 and the sit made of 420 AISI material.
The hive of the piston is made of Fiberglass EPTM charged Ntlon 66 The heat conductivity of this material less than steel. So the heat of the fluid does not conduct to the working items in the piston.
Plug gasket made of carbon charged PTFE for an exellent resistance to high temperature.
PTFE and viton stuffling box suitable for both high and low temperature, installed in a self adjusting stable position to have minimum stress for a constant operation.
This valve has open valve visual indicator
This valve is flanged in the connections.

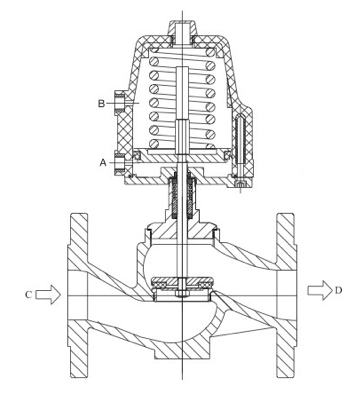

A. Normally Closed Feeding

B. Normally Open Feeding

C. Inflow

D. Outflow

py101

PY 45 DN15-50 VALVES
1) Media	Steam, Water, Air, Oil
2) Nominal Pressure	PN16
3) Min. Working Temperature	-10°C
4) Max. Working Temperature	+180°C
5) Actuator Working Temperature	: 10°C+100°C
6) Pilot Entrance	Air
7) Pilot Pressure	4-6 Bar

Entrance Orifice Size	Piston Actuator (mm)	Medium Pressure (bar)	Pilot Pressure (bar)
DN15	50	14	4-6
DN15	80	32	4-6
DN20	50	14	4-6
DN20	80	28	4-6
DN25	50	6	4-6
DN25	80	16	4-6
DN32	50	4.5	4-6
DN32	80	12	4-6
DN32	100	20	4-6
DN40	80	12	4-6
DN40	100	18	4-6
DN50	80	6	4-6
DN50	100	10	4-6
DN65	150	10	4-6

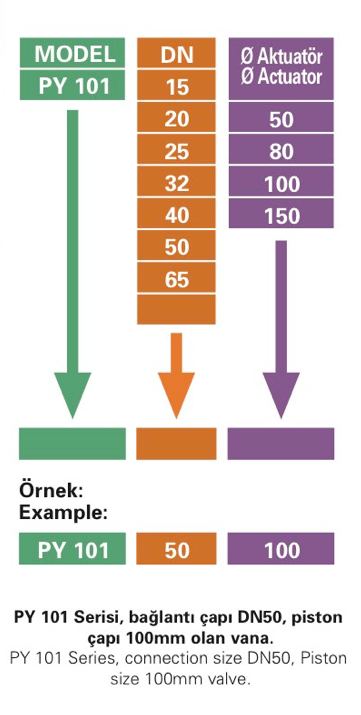

py10111

py1001

PY45 DN15-50 VALVES

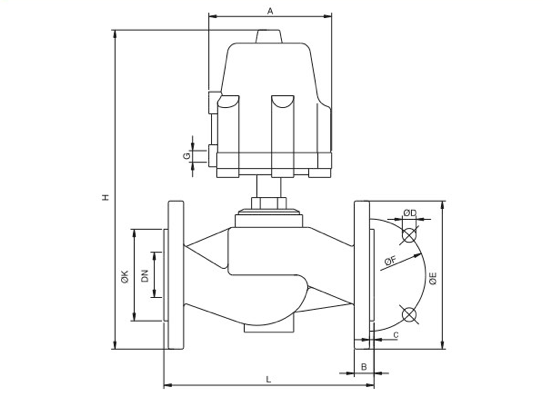

DN	Rp/Ntp	Piston Actuator	H	L	A	G	K	D	E	F	B	C	kvm3/h	kg
15	1/2"	50	234	130	70	1/8"	45	14	95	65	14	2	5	2.7
15	1/2"	80	266	130	110	1/4"	45	14	95	65	14	2	-	-
20	3/4"	50	238	150	70	1/8"	58	14	105	75	16	2	9	4
20	3/4"	80	270	150	110	1/4"	58	14	105	75	16	2	-	-
25	1"	50	255	160	70	1/8"	68	14	115	85	16	2	-	-
25	1"	80	287	160	110	1/4"	68	14	115	85	16	2	17	5.6
32	1.1/4"	50	281.5	180	70	1/8"	78	18	140	100	18	2	-	-
32	1.1/4"	80	313.5	180	110	1/4"	78	18	140	100	18	2	20	7.7
32	1.1/4"	100	333.5	180	137	1/4"	78	18	140	100	18	2	-	-
40	1.1/2"	80	317.5	200	110	1/4"	88	18	150	110	18	3	34	8.7
40	1.1/2"	100	337.5	200	137	1/4"	88	18	150	110	18	3	-	-
50	2"	80	339	230	110	1/4"	102	18	165	125	20	3	-	-
50	2"	100	357	230	137	1/4"	102	18	165	125	20	3	45	13.5
65	2.1/2"	150	491	290	212	1/4"	122	18	185	145	20	3	-	26.7
